Install A Solar Vent

A solar vent requires no external power, the vent will ensure air circulation and help prevent the formation of mold and mildew, especially when the boat is left closed up for extended periods. Some vents can run in either direction so it's often possible to fit two, one to draw air into the space and another to extract further enhancing efficiency. This is an easy project that almost anyone with a basic set of tools can achieve, although you may need to purchase a hole saw of the correct size. Carefully read any instructions that come with your particular model before starting the installation as they may differ slightly from those shown in the photographs.

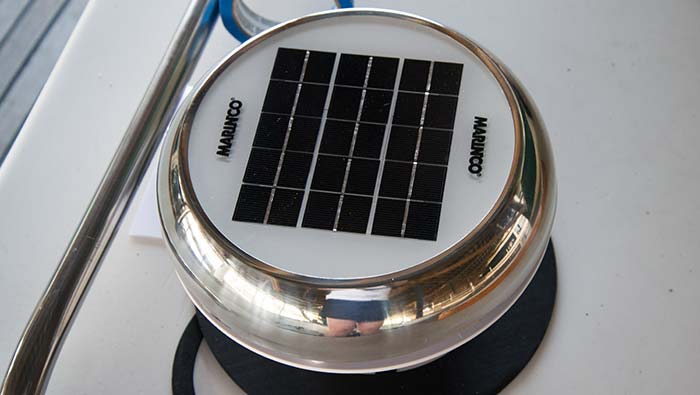

The vent I installed was a 4-1/2-inch Marinco model purchased from West Marine.

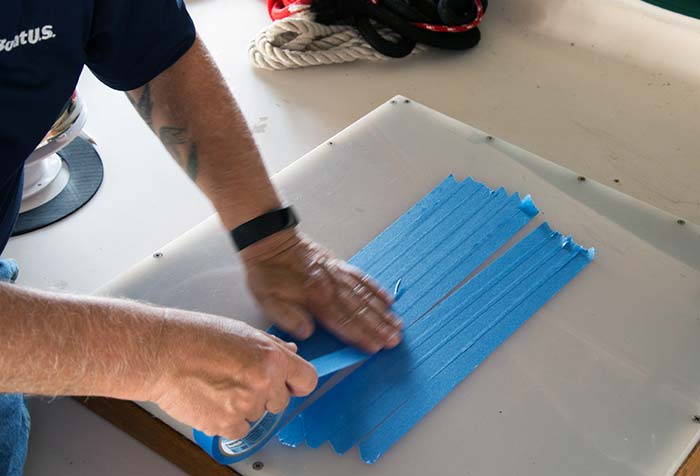

Step 1: Start by sticking masking tape to the outside surface, center section of the hatch as this helps prevent chipping of the polycarbonate hatch panel when cutting through with the hole saw.

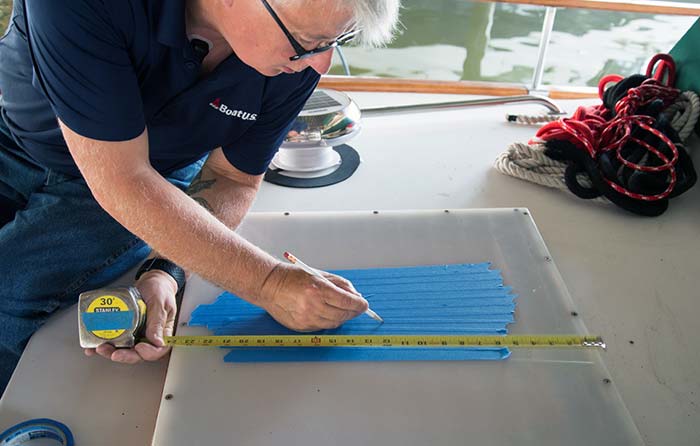

Step 2: Mark the center point by drawing across the diagonals and noting where the lines cross. Check your measurements carefully, a vent positioned off-center will stick out like a sore thumb.

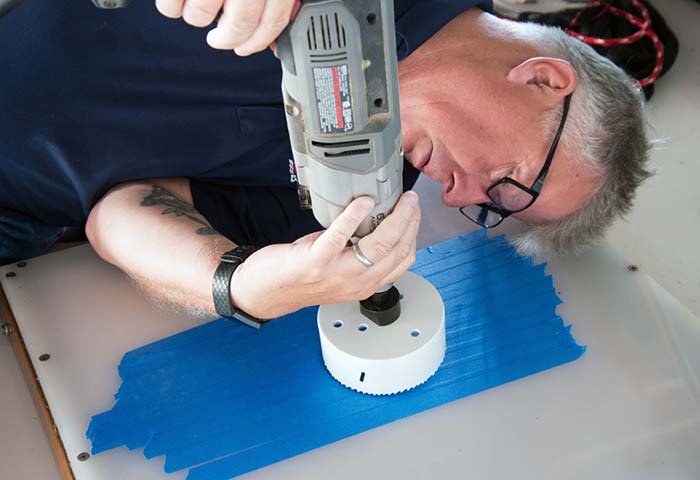

Step 3: Position the pilot bit of the hole saw on the center mark. You may find a punch helpful. Carefully drill through the Lexan using a slow speed. You’ll likely need a plug-in drill as rechargeables often lack sufficient power. You may also need to periodically reverse the hole saw to allow it to cool and prevent the Lexan from melting in the teeth.

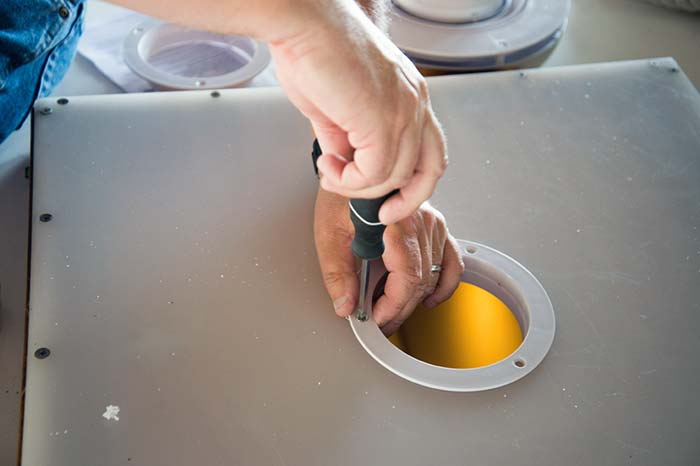

Step 4: After removing the tape, test fit the outer mounting flange into the drilled hole. Drill for the mounting bolts or screws using a drill of the correct size; the size is often given in the vent installation instructions.

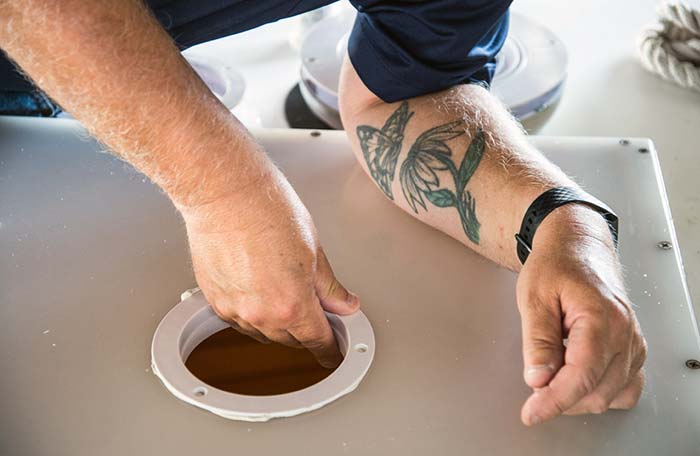

Step 5: Apply a bead of sealant to the underside of the mounting flange, or use butyl tape as I have here, before affixing the top flange with screws. Don't overtighten the screws or you risk cracking the Lexan.

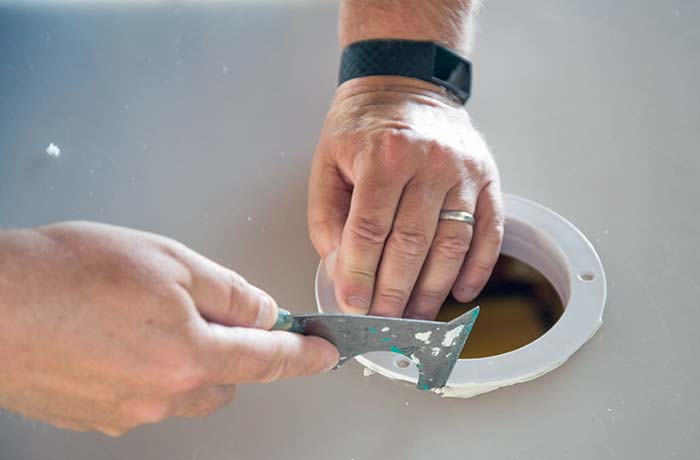

Step 6: Press the flange into place, and clean off any excess sealant or tape using a scraper followed by a suitable solvent.

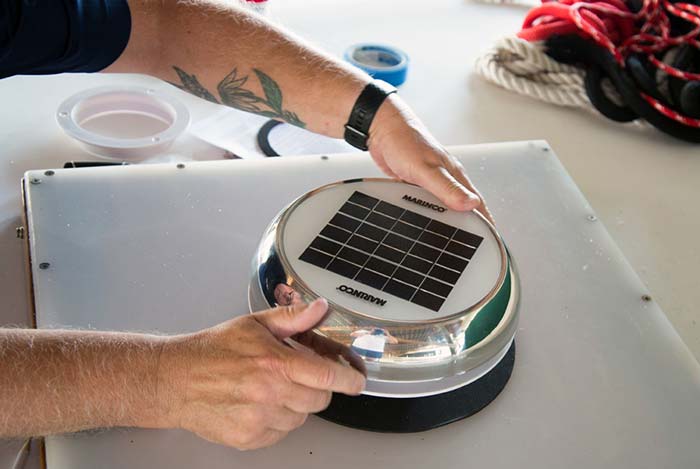

Step 7: Install the solar vent in place by screwing it into the mounting flange. Note that this particular vent has a neoprene gasket as an additional measure to prevent water intrusion.

Step 8: Screw on the inner trim ring from inside the cabin, noting that unlike the outer ring, this one has a neoprene gasket in place of any kind of sealant.

Step 9: The completed job showing the gap below the "mushroom" where the air is vented from below decks.
